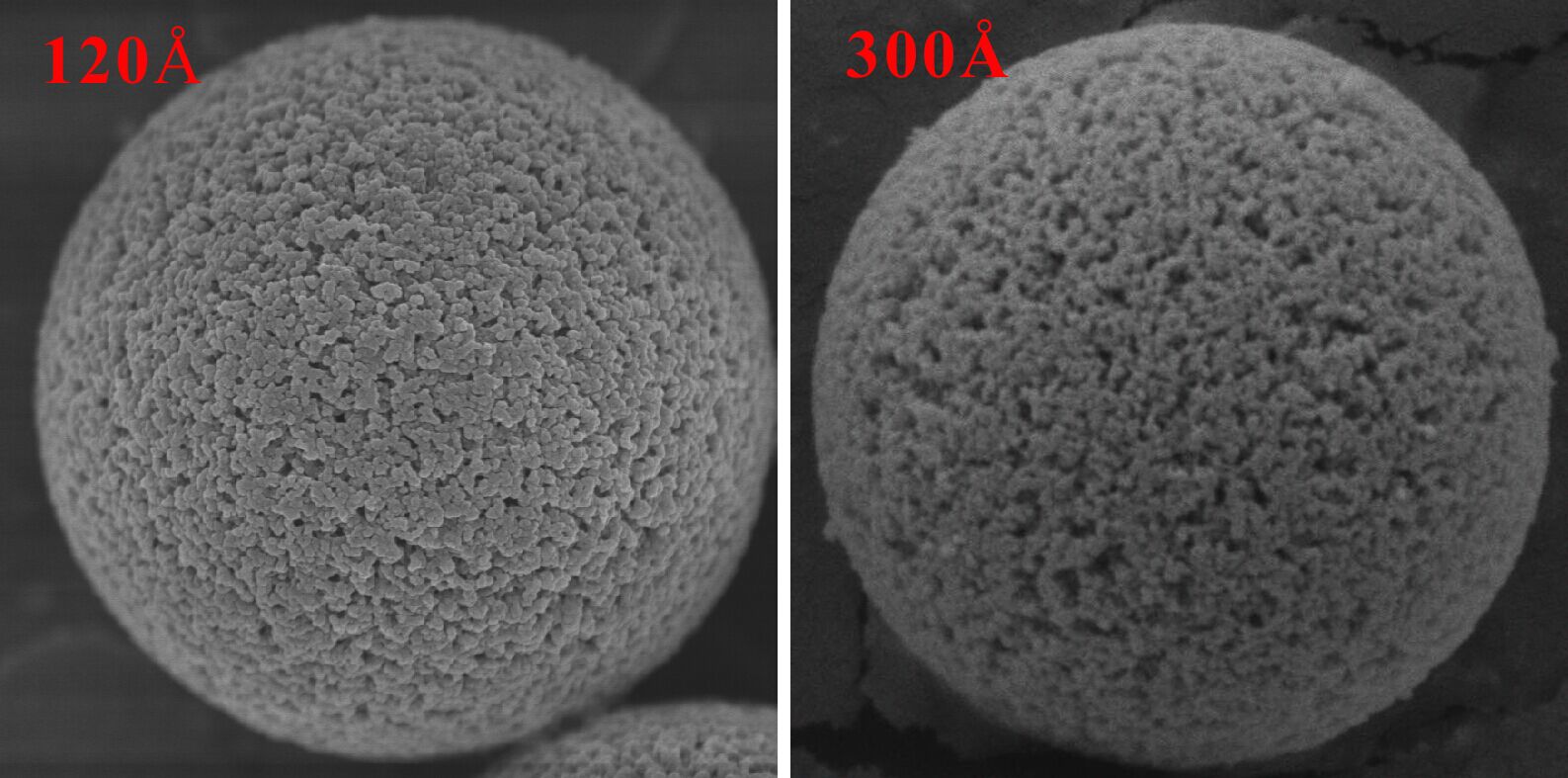

Knowledg & Benefit Tech. developed the technology to produce highly monodisperse, ultra-pure porous silica gel microspheres of any size ranging from 1.7 to 40 microns for high performance chromatography media. Meanwhile, Trigoats Tech developed the novel surface-bonding and end-capping technologies to provide non-polar packing media such as C18, C8 and C4.
Trigoats Tech' s silica based chromatography media with optimized pore structure provides excellent selectivity, low back pressure, and exceptional batch-to-batch reproducibility. Trigoats Tech can offer the complete lines of silica based chromatography media including nomal phased and reversed phased chromatography media which are designed for laboratory and process scale purification of proteins, peptides, nucleic acids, antibiotics, and low molecular weight pharmaceuticals.
Table 1：List of silica based nomal phase chromatography media
| Product Name | Particle Size（µm） | Pore Size（Å） |
|---|
| QY-Si-1.7 | 1.7 | 120, 300, 500 |
| QY-Si-3 | 3 | 120, 300, 500 |
| QY-Si-5 | 5 | 120, 300, 500 |
| QY-Si-8 | 8 | >120, 300, 500 |
| QY-Si-10 | 10 | 120, 300, 500 |
| QY-Si-15 | 15 | 120, 300, 500 |
| QY-Si-20 | 20 | 120, 300, 500 |
| QY-Si-25 | 25 | 120, 300, 500 |
| QY-Si-30 | 30 | 120, 300, 500 |
| QY-Si-40 | 40 | 120, 300, 500 |
| QY-Si-50 | 50 | 120, 300, 500 |
Table 2：List of silica based reverse phase chromatography media
| Product Name | Particle Size（µm） | Pore Size（Å） | Surface Group |
| QY-Si-1.7C18/C8/C4 | 1.7 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-3C18/C8/C4 | 3 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-5C18/C8/C4 | 5 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-8C18/C8/C4 | 8 | 20, 300, 500 | C18, C8, C4 |
| QY-Si-10C18/C8/C4 | 10 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-15C18/C8/C4 | 15 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-20C18/C8/C4 | 20 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-25C18/C8/C4 | 25 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-30C18/C8/C4 | 30 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-40C18/C8/C4 | 40 | 120, 300, 500 | C18, C8, C4 |
| QY-Si-50C18/C8/C4 | 50 | 120, 300, 500 | C18, C8, C4 |
|
